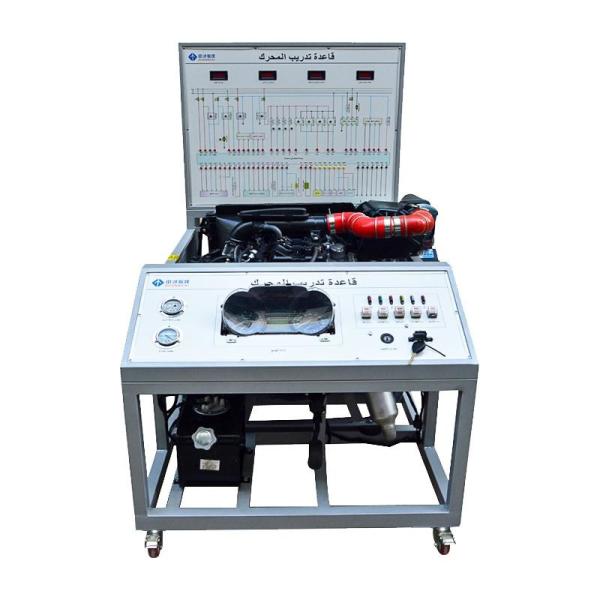

Educational Automobile Teaching Board for Vocational Training
The Educational Automobile Teaching Board adopts Toyota Land Cruiser electronically controlled gasoline
engine assembly, equipped with comprehensive diagnostic test
functions, supports multiple detection methods, and meets the
teaching and practice needs of engine electronic control system..
Equipment composition and basic diagnostic functions:
This Educational Automobile Teaching Board adopts Toyota Land Cruiser electronically controlled gasoline
engine assembly, equipped with diagnostic socket, which can be
connected to special or universal automobile decoder, and
implements engine self-diagnosis functions such as reading fault
code, clearing fault code, reading data stream, etc. for the engine
electronic control system.
Advanced diagnostic and analysis functions:
This Educational Automobile Teaching Board also has advanced diagnostic functions such as dynamic and static
data stream reading, fault code reading, waveform analysis, and
actuator action test.
Extended detection interface and tool support:
The ZhongCai ZC-QCA01M Educational Automobile Teaching Board is equipped with computer lead terminals, and multimeter and
oscilloscope can be used to detect the resistance, voltage,
frequency, waveform and other parameters of each sensor and
actuator, providing more comprehensive detection means.
Technical Parameters:
| Power Source | Gasoline |
| Sample | Support |
| Training Materials | Steel |
| Training Topics | Gasoline Engine Operation, Maintenance, Troubleshooting |
| Function | Teaching |
| Feature | Education Training |
| Suitable For | Technical Schools, Training Centers, Workshops, College |
| Customizable | OEM |
